Description

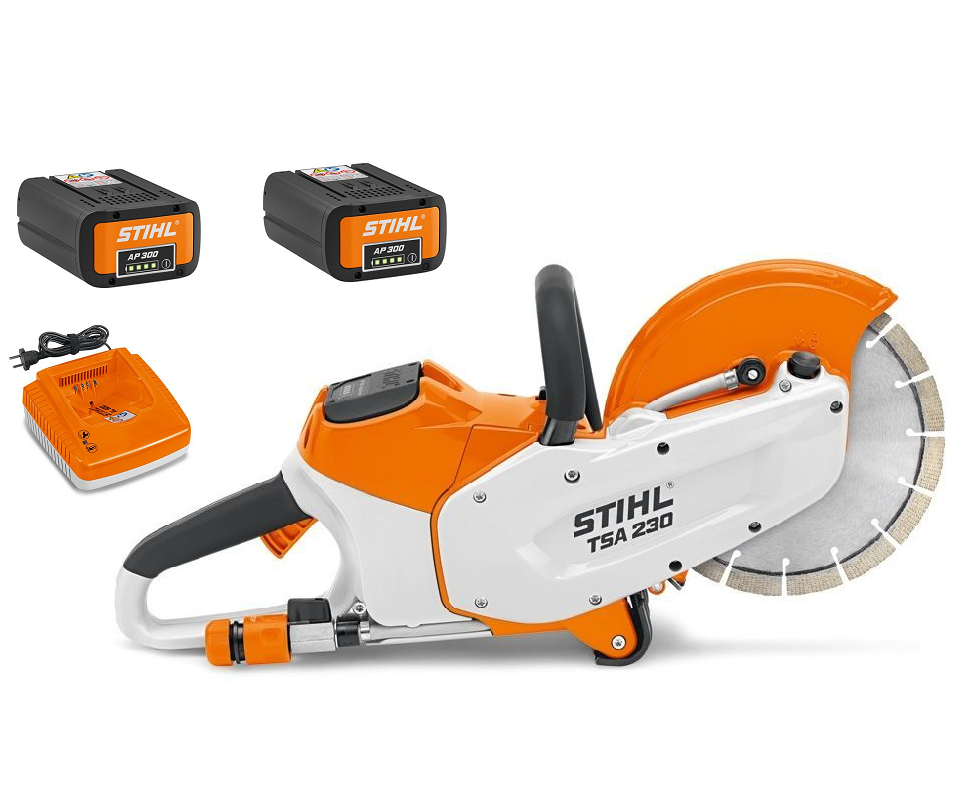

Kit contains:
1 x Stihl TSA 230 cut off saw (9″ disc)
2 x Stihl AP 300 battery
1 x Stihl AL 500 battery charger
Stihl is proud to introduce the world’s first 9†cordless cut off saw. Cutting neatly and swiftly up to 70mm deep, the TSA 230 is ideal for cutting roofing tiles, bricks, metal and paving blocks. It is particularly light at only 3.9 kg (without battery). Emission-free cordless technology benefits both the operator and environment whilst allowing the tool to be operated indoors and outdoors. The water connection and vacuum accessories ensure effective dust control when cutting. Supplied with an abrasive wheel for cutting steel.
Low-maintenance motor technology
The EC motor with maintenance-free belt drive and enclosed control unit is very durable and low maintenance.
Magnesium guard
The cutting wheel guard is made from a light and durable die cast aluminium.
Ergonomic handle
The ergonomic wrap around handle allows for a more comfortable and precise use in a variety of positions.
Spindle lock mechanism
Cutting wheels can be changed quickly and easily.
Stihl electric motor (EC)
The Stihl electric motor (EC) is extremely energy efficient, lightweight and compact. It runs quietly, generates very low vibrations and does not require servicing.
Hose attachment
Water is supplied to the cutting wheel through the standard water connection with sprinkler system to suppress the dust produced during cutting. It is supplied to the device in such a way so as not to interfere with your work.
Coasting brake
Electronic coasting brake brings the blade to a quick stop. No free wheeling.
| Brand | Stihl |
|---|---|
| Power Type | Lithium Ion Battery |
| Rated Voltage | 36 V |
| Max depth of Cut | 70mm |
| Blade Included | Yes |
| Blade Diameter | 230mm |
| Recommended Battery | Stihl AP 300 |
| Vibration Levels | 3.5 / 3.5 m/s² (left / right) |
| Noise Levels | 114 dB(A) |
| Weight | 3.9 kg |
| Domestic Warranty | 1 Year |
| Commercial Warranty | 2 Years |
| Run Time with AP 100 battery | 6 min |
|---|---|
| Run Time with AP 200 battery | 12 min |
| Run Time with AP 300 battery | 18 min |
| Run Time with AR 1000 battery | 50 min |
| Run Time with AR 2000 battery | 75 min |
| Run Time with AR 3000 battery | 95 min |
